型号 |
F020 |
F025 |
F032 |
F035 |
F036 |
F038 |
F041 |
F045 |
F050 |
F050A |
F051 |
F060 |
F100 |
|
A(mm) |
20 |
25 |
32 |
35 |
36 |
38 |
41.4 |
45 |
50 |
50 |
51 |
60 |
100 |
|
T(mm) |
2.0 |
1.2 |
3.0 |
2.0 |
3.0 |
1.2 |
2.5 |
5 |
2.0 |
1.2 |
3.0 |
3.0 |
1.7 |
|
kg/m |
0.389 |
0.308 |
0.94 |
0.713 |
1.07 |
0.477 |
1.05 |
2.16 |
1.04 |
0.63 |
1.555 |
1.847 |
1.805 |
|
型号 |
ΦD(mm) |
T(mm) |
Kg/m |
|
Y008 |
12 |
1.75 |
0.153 |
|
Y009 |
18.5 |
4.85 |
0.56 |
|
Y011 |
14 |
1.5 |
0.159 |
|
Y016 |
18.8 |
1.2 |
0.18 |
|
Y017 |
19.8 |
1.3 |
0.21 |
|
Y017A |
19 |
1.2 |
0.182 |
|
Y017B |
20 |
1.5 |
0.24 |
|
Y018 |
20 |
0.8 |
0.13 |
|
Y020 |
22.8 |
1.2 |
0.22 |
|
Y021 |
24.4 |
1.7 |
0.33 |
|
Y022 |
25.2 |
1.5 |
0.30 |
|
Y022B |
25.4 |
1.7 |
0.34 |
|
Y024 |
27.2 |
1.6 |
0.35 |
|
Y025 |
27.8 |
1.2 |
0.28 |
|
Y025A |
25 |
1.0 |
0.20 |
|
Y026 |
30 |
1.75 |
0.42 |
|
Y031 |
35 |
1.75 |
0.49 |
|
Y032 |
34.8 |
1.2 |
0.36 |
|
Y080 |
82.2 |
1.1 |
0.76 |
|
Y080A |
80 |
3.0 |
1.96 |
|
Y086 |
90 |
2.0 |
1.493 |
|
Y104 |
108 |
2.0 |
1.798 |
|
Y111 |
116 |
2.5 |
2.407 |
|
Y122 |
127 |
2.5 |
2.64 |
|
型号 |
A(mm) |
B(mm) |
T(mm) |
Kg/m |
|
J020 |
20 |
17 |
1.2 |
0.117 |
|
J020A |
5.0 |
20 |
1.5 |
0.095 |
|
J022 |
20 |
22 |
3.0 |
0.316 |
|
J023 |
17 |
23 |
3.0 |
0.3 |
|
J025 |
25 |
25 |
2.0 |
0.26 |
|
J025A |
25 |
20 |
1.5 |
0.176 |
|
J026 |
10 |
26 |
3.0 |
0.266 |
|
J030 |
30 |
27.5 |
3.0 |
0.465 |
|
J030A |
20 |
30 |
2.0 |
0.26 |
|
J030B |
25 |
30 |
2.0 |
0.286 |
|
J046A |
25 |
46 |
2.0 |
0.373 |
|
J055 |
55 |
36 |
10 |
2.187 |
|
J060A |
60 |
40 |
4.0 |
1.037 |
|
J060B |
60 |
24 |
3.0 |
0.656 |
|
J060C |
60 |
60 |
3.0 |
0.947 |
|
J060D |
60 |
50 |
8.5 |
2.33 |
|
J060E |
60 |
50 |
8.5,7 |
2.161 |
|
J080 |
80 |
80 |
4.0 |
1.667 |
|
J081 |
81 |
20 |
1.5 |
0.402 |
|

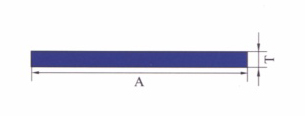

型号 |
A(mm) |
T(mm) |
Kg/m |
|
P006 |
6.2 |
4.7 |
0.078 |
|
P007 |
7.15 |
4.5 |
0.085 |
|
P012 |
12 |
4.7 |
0.152 |
|
P013 |
12.7 |
9.5 |
0.326 |
|
P016 |
16 |
9.5 |
0.41 |
|
P016A |
16 |
2.0 |
0.086 |
|
P016B |
16 |
3.0 |
0.13 |
|
P016C |
16 |
16 |
0.691 |
|
P025 |
25 |
2.5 |
0.169 |
|
P030 |
30 |
5.0 |
0.405 |
|
P030A |
30 |
16 |
1.296 |
|
P035 |
35 |
3.0 |
0.28 |
|
P039 |
39 |
3.0 |
0.316 |
|
P045 |
45 |
10 |
1.215 |
|
P045A |
45 |
25 |
3.037 |
|
P055 |
55 |
10 |
1.485 |
|
P060 |
60 |
5.0 |
0.81 |
|
P060A |
60 |
6.0 |
0.972 |
|
P062 |
62 |
22 |
3.683 |
|
P083 |
83 |
2.0 |
0.448 |
|
P089 |
89 |
1.1 |
0.264 |
|
P100 |
100 |
16 |
4.32 |
|
P123 |
123 |
5.8 |
1.926 |
|
型号 |
C010 |
C011 |
C012 |
C013 |
C015 |
C025 |
C032 |
C039 |
C040 |
C043 |
C100 |
|
A(mm) |
10 |
44.5 |
44.5 |
12.5 |
15 |
25 |
32 |
39 |
40 |
43.5 |
100 |
|
B(mm) |
10 |
9.53 |
12.7 |
12.5 |
15 |
15 |
25 |
10 |
40 |
20 |
50 |
|
T(mm) |
1.2 |
3.18 |
3.18 |
1.0 |
1.4 |
1.4 |
3.0 |
3.0 |
4.0 |
4.0 |
3.0 |
|
kg/m |
0.089 |
0.50 |
0.55 |
0.096 |
0.159 |
0.159 |
0.64 |
0.429 |
1.214 |
0.808 |
1.573 |
|
型号 |
A |
B |
T |
Kg/m |
|
B025 |
24.5 |
9.5 |
1.15 |
0.195 |
|
B028 |
28 |
22 |
3 |
0.713 |
|
B030 |
30 |
24 |
2.5 |
0.676 |
|
B032 |
32 |
18 |
3 |
0.713 |
|
B038 |
38 |
25 |
0.75 |
0.25 |
|
B045 |
45 |
30 |
3 |
1.118 |
|
B045A |
45 |
24 |
3 |
1.021 |
|
B050 |
50 |
30 |
3 |
1.2 |
|
B050A |
50 |
43 |
3 |
1.41 |
|
B050B |
50 |
25 |
1.1 |
0.433 |
|
B060 |
60 |
30 |
3 |
1.358 |
|
B076 |
76 |
44 |
1.3 |
0.824 |
|
B100 |
100 |
50 |
1.9 |
1.5 |
|
B100A |
100 |
25 |
1.2 |
0.918 |
|
B100B |
100 |
44 |
1.2 |
0.929 |
|
B100C |
100 |
44 |
4 |
2.929 |
|
